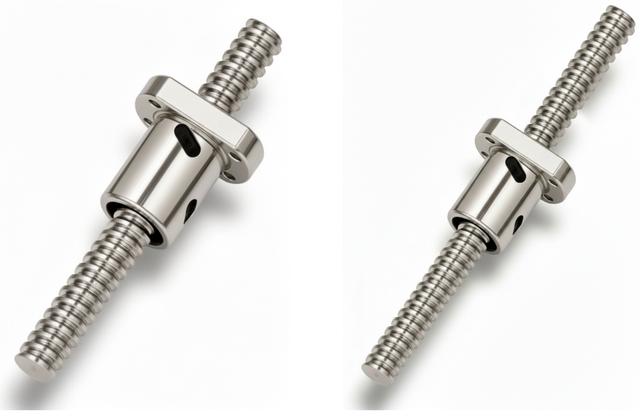

STANDARD PARTSGDR Series
Rolled - Ball Screw (Deflector-type)

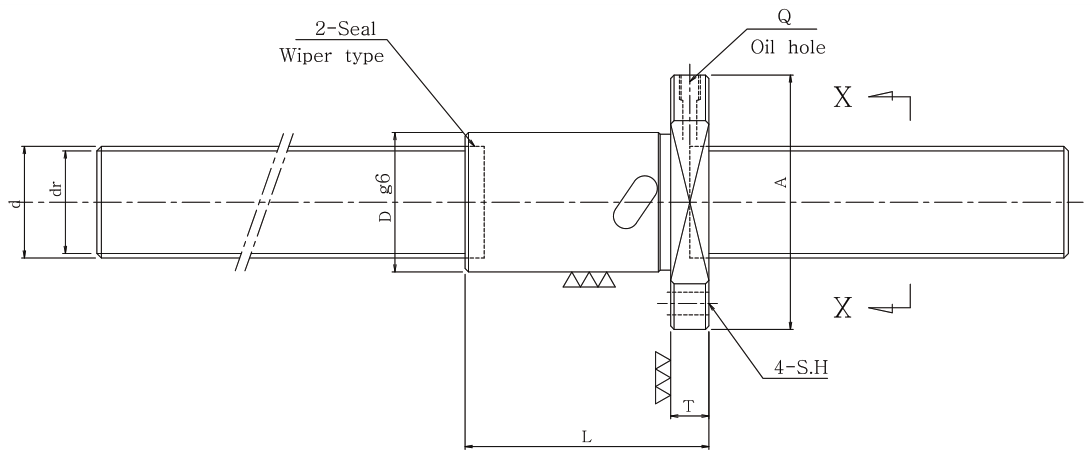

| Model number | Screw diameter d | Lead l | Ball diameter Da | Root diameter dr | Turn × Circuit | Load rating | Axial clearance Max (mm) | Nut (Dimension) | Standard shaft length | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ca KN | Coa KN | Body D | Flange | L | PCD | Set hole | Oil hole | ||||||||||

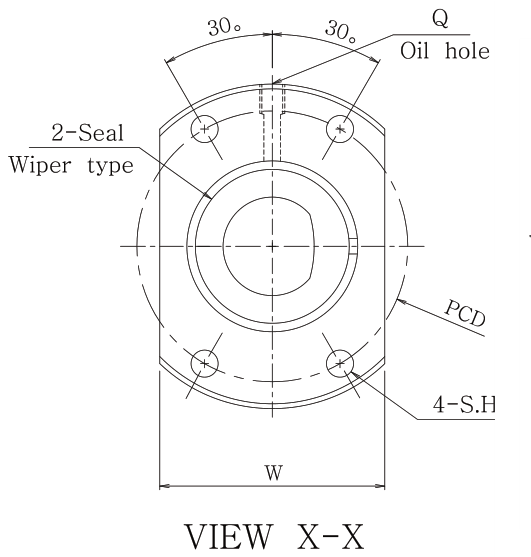

| W | A | T | S.H | Q | |||||||||||||
| GDR-1605-4 | 16 | 5 | 3.175 (1/8") | 13.4 | 1×4 | 7.1 | 15.7 | 0.07 | 30 | 34 | 49 | 10 | 47 | 39 | 4.5 | M6x1.0 | 1000, 1500, 2000 |
| GDR-2005-4 | 20 | 5 | 3.175 (1/8") | 17.4 | 1×4 | 8.3 | 20.8 | 0.07 | 34 | 40 | 58 | 11 | 48 | 46 | 5.5 | M6x1.0 | 1000, 1500, 2000, 3000 |
| GDR-2505-4 | 25 | 5 | 3.175 (1/8") | 22.4 | 1×4 | 9.3 | 27.3 | 0.07 | 40 | 46 | 63 | 11 | 50 | 51 | 5.5 | M6x1.0 | 1000, 1500, 2000, 3000 |
| GDR-2510-4 | 10 | 4.763 (3/16") | 20.9 | 1×4 | 15.2 | 37.5 | 0.10 | 46 | 52 | 72 | 12 | 79 | 58 | 6.6 | M6x1.0 | 1000, 1500, 2000, 3000 | |
| GDR-3205-4 | 32 | 5 | 3.175 (1/8") | 29.4 | 1×4 | 10.7 | 36.3 | 0.07 | 46 | 52 | 72 | 12 | 51 | 58 | 6.6 | M6x1.0 | 1000, 1500, 2000, 3000 |
| GDR-3210-4 | 10 | 6.350 (1/4") | 26.8 | 1×4 | 24.7 | 62.7 | 0.12 | 54 | 62 | 88 | 15 | 85 | 70 | 9 | M8x1.0 | 1000, 1500, 2000, 3000 | |
| GDR-4010-4 | 40 | 10 | 6.350 (1/4") | 34.8 | 1×4 | 28.6 | 83.2 | 0.12 | 62 | 70 | 104 | 18 | 88 | 82 | 11 | M8x1.0 | 1000, 1500, 2000, 2500, 3000, 3500, 4000 |
| GDR-5010-4 | 50 | 10 | 6.350 (1/4") | 44.8 | 1×4 | 32.5 | 108.4 | 0.12 | 72 | 82 | 114 | 18 | 88 | 92 | 11 | M8x1.0 | 1000, 1500, 2000, 2500, 3000, 3500, 4000 |
※ 전조 볼스크류 · 디플렉터 타입 슬림형 · 단위: 하중 KN, 치수 mm · 2D·3D 도면은 모델명 아래 버튼으로 내려받을 수 있습니다.
